Touchpoint Documentation

Pure Asset Touchpoint

Touchpoint: offline-2 · Type: ASSET card · Root node with nested child

Full API response (collapsible)

Node tree

Auto-applied transforms

utm_content — offline-2 auto-appended to CTA action URL

hydration — not applicable (ASSET node, no coinId needed)

nested nodes — root node contains a child nodes[] array with the main image asset

Rendered touchpoint (Figma 1:1)

Offline

SHOP ONLINE

background

nodes[0].images[0]

overlay

badge

cta

layoutHint: card

Images failed to load — download and open locally.

Layer stack (z-order)

1 background — sunburst pattern (full card)

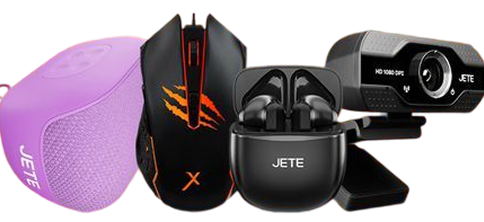

2 nodes[0].images[0] — product collage (from child node)

3 overlay — Cash on Delivery banner (157×114)

4 badge — backgroundImage asset ("Offline" indicator)

5 cta — "SHOP ONLINE" (160×76)

Products with Static Assets

Touchpoint: online-3 · Type: ASSET + STATIC children · Product carousel

Full API response (collapsible)

Node tree

Key differences from Pure Asset

nodes[] — parent ASSET contains 5 STATIC children, each representing a product

productId — each child node references a product UUID for hydration

data — hydrated product info: name, price, discount, coinSpread

images[] — static product image (pre-designed asset, not the product imageUrl)

cta.backgroundImage — overlay asset for the CTA button

Data priority & chaining pattern

Rule: Node-level asset fields take priority over hydrated data fields. Use chaining to prefer explicit assets, fallback to product data.

Why? Static images are pre-designed assets tailored for the touchpoint layout. Product imageUrl may have different aspect ratios or styles.

Chaining examples (TypeScript/Unity):

// Image: prefer node.images[0], fallback to data.imageUrl
const productImage = node.images?.[0] ?? node.data?.imageUrl;

// Title: prefer node.title[0].text, fallback to data.name
const title = node.title?.[0]?.text ?? node.data?.name;

// Price: always from hydrated data (real-time pricing)
const price = node.data?.discountedListingPrice;
const coinSpread = node.data?.coinSpread;

// CTA action: prefer node.cta.action, fallback to data.ctaUrl
const ctaUrl = node.cta?.action ?? node.data?.ctaUrl;

In this example: images[0] is a static PNG asset, not the product's imageUrl. The coinSpread and prices come from data (hydrated in real-time).

Rendered touchpoint (Figma 1:1)

32

background

nodes[0].images[0]

cta

Images failed to load - download and open locally.

Layer stack (z-order)

1 background — orange sunburst (full card)

2 nodes[0].images[0] — product carousel (200x200)

3 cta — cta.backgroundImage + coinSpread (32)

Dynamic Product Touchpoint

Touchpoint: vip-store · Type: DYNAMIC nodes · Algorithmically served products

Full API response (collapsible)

Node tree

Key characteristics

dataType: DYNAMIC — nodes are generated at runtime based on dynamicConfig rules

id: dynamic-* — IDs are prefixed with "dynamic-" followed by parent node ID and index

no images[] — unlike STATIC nodes, these have no pre-designed assets

data.imageUrl — product image comes directly from the catalog/CDN

layoutHint: carousel — UI hint for rendering as horizontal scroll or carousel

background.color — optional card background color as hex value (#0377FC)

cta.backgroundImage — button background image URL from S3/CDN

cta.text — button label text (e.g., "Add")

How it differs from STATIC

Aspect	STATIC	DYNAMIC
Product selection	Hand-picked in console	Algorithm/filters
images[]	Pre-designed S3 assets	Not present
Product image	images[0] (designed)	data.imageUrl (catalog)
Node ID	UUID from database	dynamic-{parentId}-{index}
Count	Fixed (configured)	Variable (by config limit)
background.color	Rarely used (asset-based)	Common (dynamic card styling)

Usage pattern (TypeScript)

// Dynamic nodes: use data directly (no asset chaining needed)
touchpoint.nodes.forEach((node) => {
  if (node.dataType === 'DYNAMIC') {
    // Image comes from catalog - no node.images[] override
    const imageUrl = node.data.imageUrl;

    // All product info from data
    const name = node.data.name;
    const price = node.data.discountedListingPrice;
    const coins = node.data.coinSpread;
    const discount = node.data.discountPercent;

    // CTA with action, text, and backgroundImage
    const ctaUrl = node.cta?.action;
    const ctaText = node.cta?.text ?? 'Add';
    const ctaBgImage = node.cta?.backgroundImage;

    // Optional background color for card styling
    const bgColor = node.background?.color ?? '#ffffff';

    renderProductCard({
      imageUrl, name, price, coins, discount,
      ctaUrl, ctaText, ctaBgImage, bgColor
    });
  }
});

Rendered touchpoint (VIP Store)

VIP Store

Baleshwar Purple Formals Shirts

₹361 ₹1099

using 38 💰

Add

Pack of 4 vintage wrist watches

₹404 ₹2999

using 25 💰

Add

Red And Black Combo Watch

₹357 ₹2199

using 22 💰

Add

Red And Blue Analog Watch

₹357 ₹2199

using 22 💰

Add

White Diamond Dial Watch

₹376 ₹1499

using 23 💰

Add

Images failed to load - download and open locally.

Data fields (from node.data)

1 data.imageUrl — product image from catalog CDN

2 data.name — product display name

3 data.discountedListingPrice — final price

4 data.coinSpread — max coin discount

5 background.color — card background color

6 cta.backgroundImage — button background asset

7 cta.text — button label text

FTUE Nested Cards Touchpoint

Touchpoint: ftue · Type: ASSET with nested nodes · Container + 3 child cards

Full API response (collapsible)

Node tree

Key characteristics

nested nodes[] — parent container with 3 child card nodes

layoutHint: container — parent acts as layout wrapper, not rendered directly

title[] — parent has styled title with text + color

background.images[] — each child has its own background asset

cta.backgroundImage — custom button assets for each card

badge — Card 2 has discount badge with text + backgroundImage

How nested nodes work

Level	Node	Purpose
Root	ftue	Touchpoint entry
Level 1	Container node	Title + CTA + holds children
Level 2	Child cards (0, 1, 2)	Individual step cards

Usage pattern (TypeScript)

// FTUE: Container with nested child cards
const container = touchpoint.nodes[0];

// Render title from container
const titleText = container.title?.[0]?.text;
const titleColor = container.title?.[0]?.color;

// Render child cards
container.nodes?.forEach((card, index) => {
  const bgImage = card.background?.images?.[0];
  const mainImage = card.images?.[0];
  const ctaLabel = card.cta?.text;
  const ctaBgImage = card.cta?.backgroundImage;
  const badge = card.badge; // Only card 2 has this

  renderCard({ bgImage, mainImage, ctaLabel, ctaBgImage, badge });
});

// Container CTA at bottom
const shopCta = container.cta;
renderButton(shopCta.text, shopCta.action);

Rendered touchpoint (FTUE)

Win Matches & Get Discount!
